Embossing Machine
We have different embossing machines available for use in different industries, including metal embossing machines, fabric embossing machines and paper embossing machines.
-
- Metal
- 3D Fabric
- Cigarette Paper

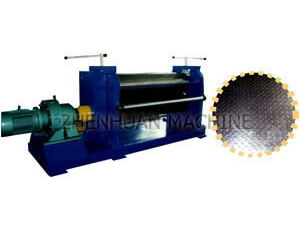

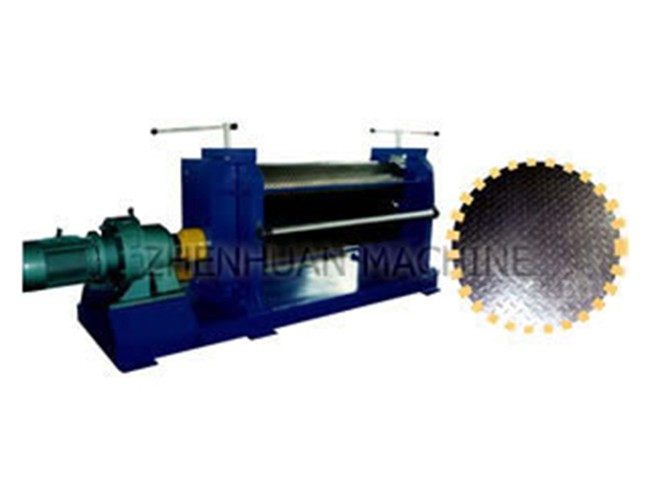

Metal Embossing Machine
In addition to this embossing machine, Zhenhuan also supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine and welding machine etc. for customers worldwide.
- Max. plate width 1350mm (or as required)
- Embossing height 1.5mm (or as required)
- Embossing speed 18m/min
- Dimension 3300×1100×1500mm
Technical Data
- Applicable materialCarbon steel, stainless steel, aluminum
- Applicable material thicknessCarbon steel: 2mm, stainless steel: 1.4mm, or as required
- Max. plate width1350mm (or as required)
- Embossing roller material9Cr2M, tempered and quenched with HRC60
- Embossing roller diameter350mm (or customized)
- Embossing height1.5mm (or as required)
- Lifespan of embossing rollers2 years
- Main drive motor powerAC motor, 11kW
- Embossing speed18m/min
- Dimension3300×1100×1500mm
- WeightAbout 4500kg

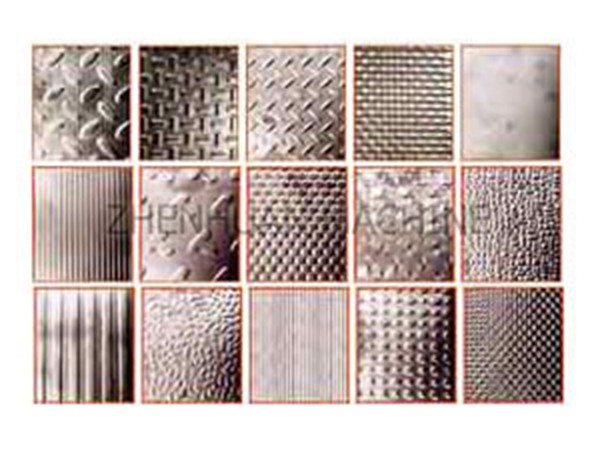

- Embossing patternBased on customer demand

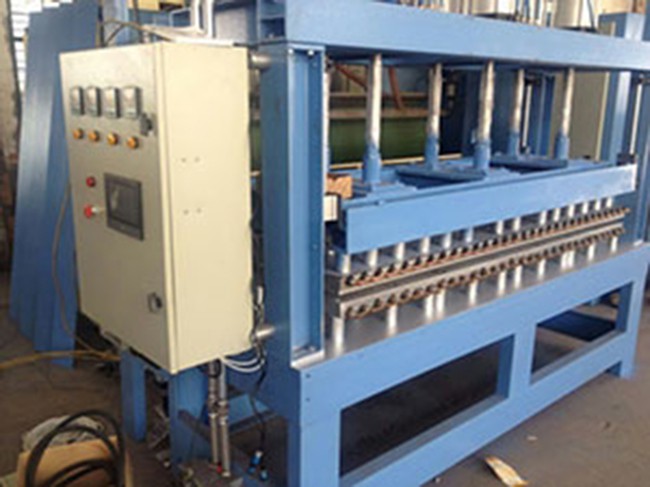

3D Fabric Embossing Machine

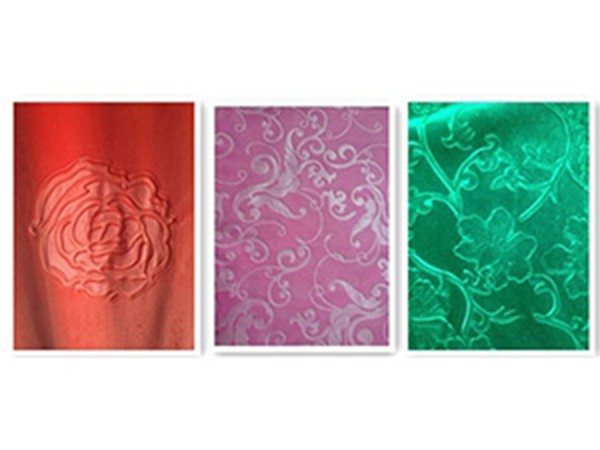

This machine is used to emboss 3D flower patterns on a variety of fabrics.
Technical Data
- Width of embossing: 2m, 2.5m, 3.2M
- Pressure method: Pneumatic
- Transmission: Servo motor sprocket feed
- PLC & HMI: Delta, Taiwan
- Machine weight: About 2800kg
- Machine dimension: About 3200 x 600 x 2300mm

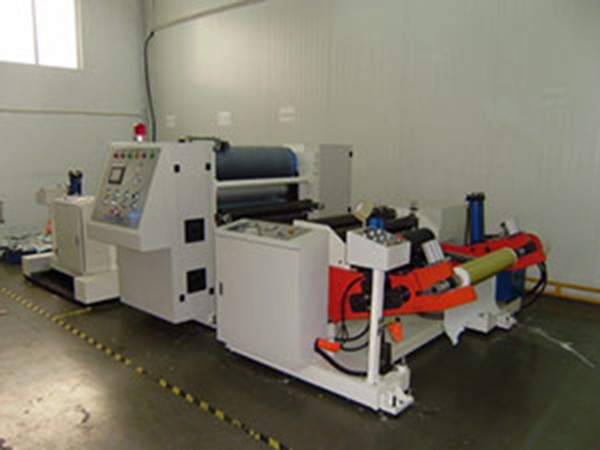

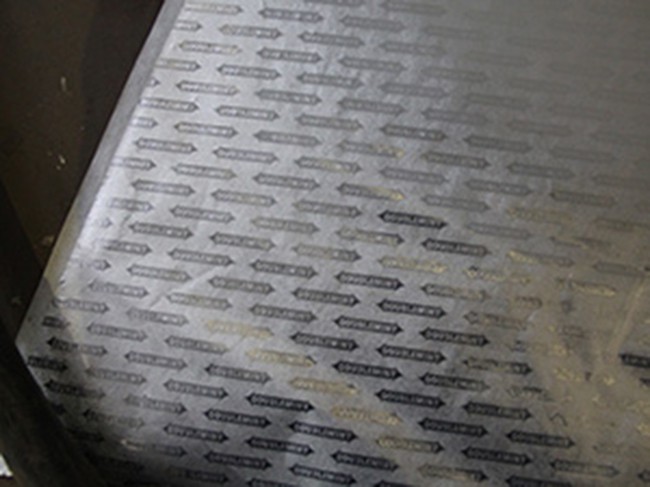

Cigarette Paper Embossing Machine
This machine is used to emboss paper materials with scroll-like, composite aluminum foil papers or other materials of similar properties. It carries out embossing using an electric hydraulic pressure at constant levels, and features a durable structure, easy operation, high accuracy and excellent stability.
- Effective working breadth 500-1000mm
- Length of embossing roller 1000mm
- Working speed 250m/min
- Total power 25kW
Technical Data
- Effective working breadth500-1000mm
- Length of embossing wool roller1000mm
- Diameter of embossing wool roller432mm
- Length of embossing roller1000mm
- Diameter of embossing roller216mm
- Suitable thickness of materials35-160g/m2
- Max. diameter of winding and unwinding1000mm
- Diameter of winding and unwinding shafts76mm
- Working speed250m/min
- Total power25kW
- Dimension of machine4100 x 2550 x 1340mm
- Machine weightAbout 8000kg
