CNC Hose Clamp Machine

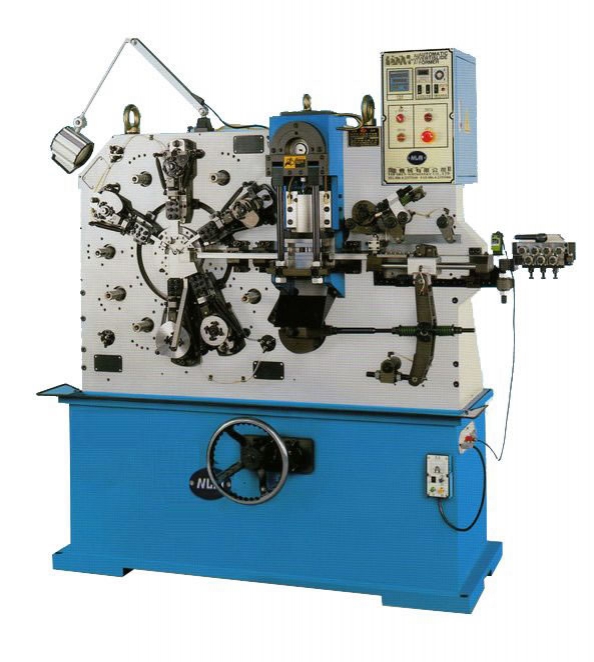

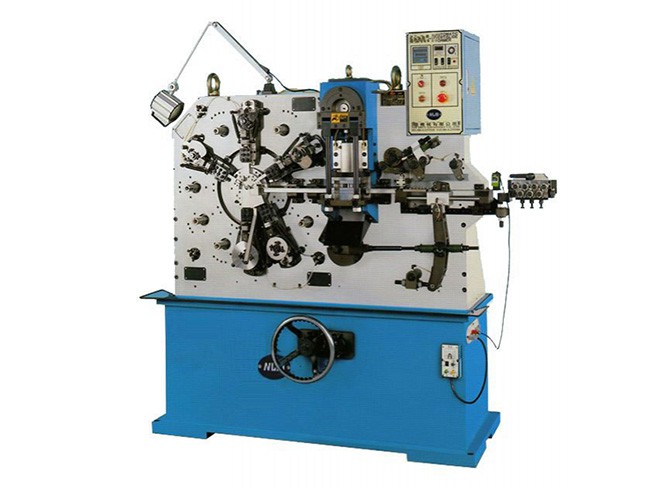

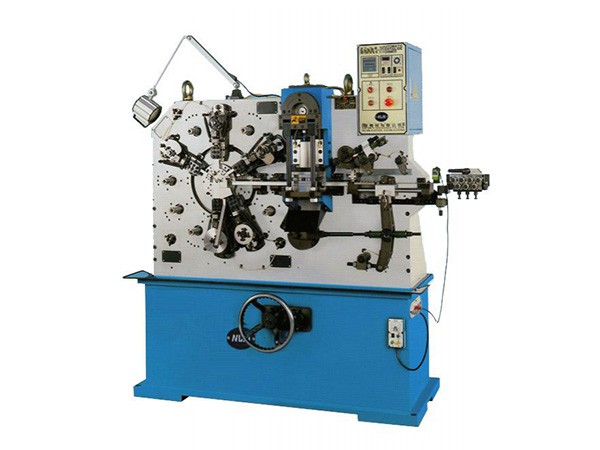

OETIKER hose clamp machine

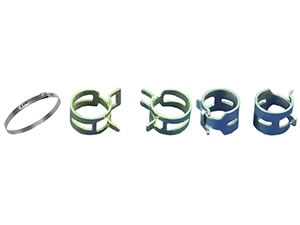

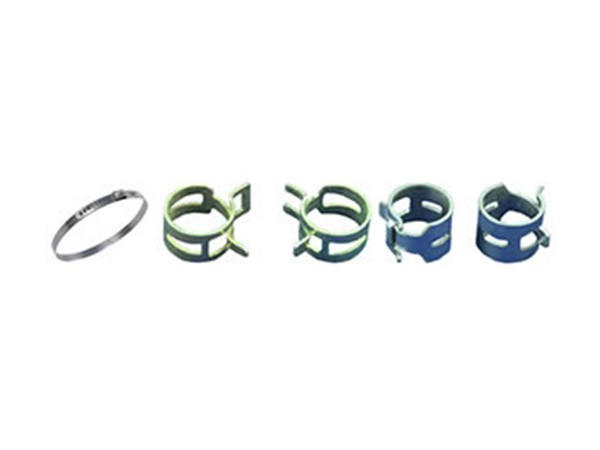

This machine is a state of the art machine designed to automatically produce wire and plate products in complex shapes. It combines the processes of leveling, punching, bending and forming, making it more efficient than conventional press forming. OETIKER hose clamps and spring band clamps are made using the hose clamp machine.

Technical Data

Item Data
Model ZHLJ-26
Suitable carbon steel wire gauge Φ0.6~2.5mm (3mm)
Suitable steel strip width 30mm
Suitable steel strip thickness 0.3~1.2mm
Max. feeding length per stroke 200mm (250mm)
Feeding precision +/-0.005mm
Punching force of punching head 10 ton
Total motor power 3.7kW
Production speed 200 pcs/min
Machine dimension About 1900 x 990 x 1900mm
Machine weight About 2100kg

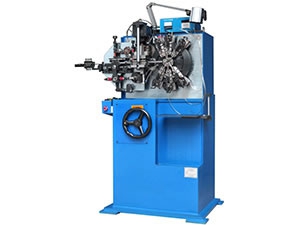

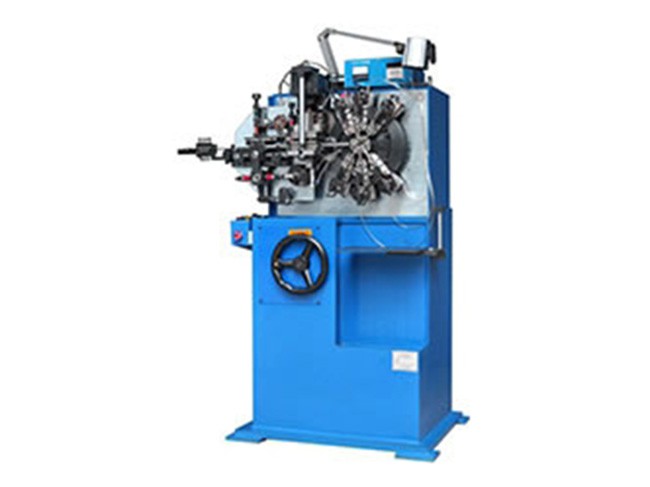

Cage Clamp machine

The cage clamp machine features a state of the art design for the automatic production of various cage clamps, including WAGO cage clamps, PHOENIX cage clamps and others.

The automatic cage clamp machine combines leveling, punching, bending and forming, making it more efficient than traditional press forming.

Technical Data

Item Data
Machine code ZHLJ-8
Suitable carbon steel wire gauge Φ0.1~1.0mm
Suitable steel strip width 15mm
Suitable steel strip thickness 0.04~0.5mm
Max. feeding length per stroke 150mm
Feeding precision +/-0.005mm
Punching force of punching head 1.5 ton
Total motor power 2.2kW
Production speed 250 pcs/min
Machine dimension About 1300 x 900 x 1800mm
Machine weight About 800kg

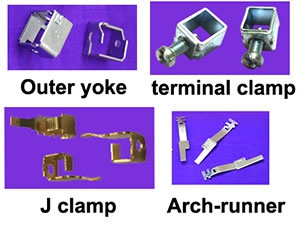

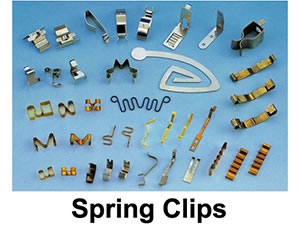

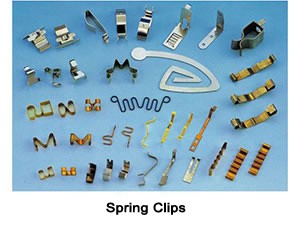

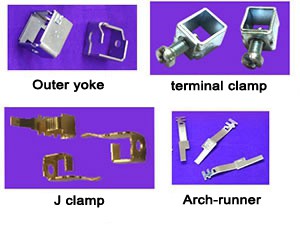

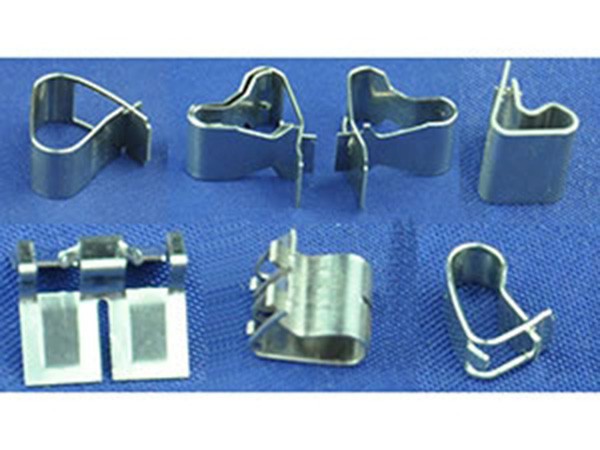

By changing the molds, this machine can also produce spring clips, MCB terminal clamps, arc runners, outer yokes and more.

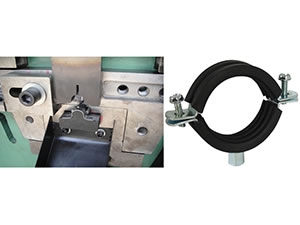

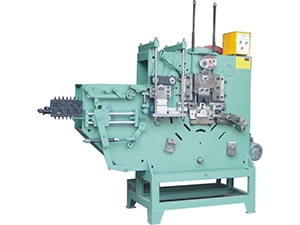

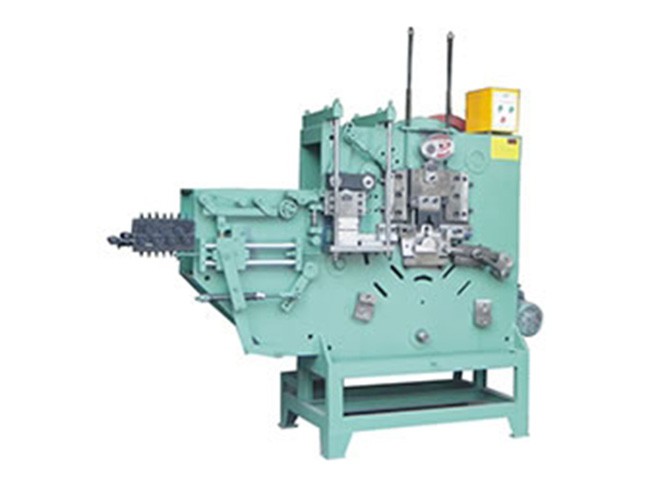

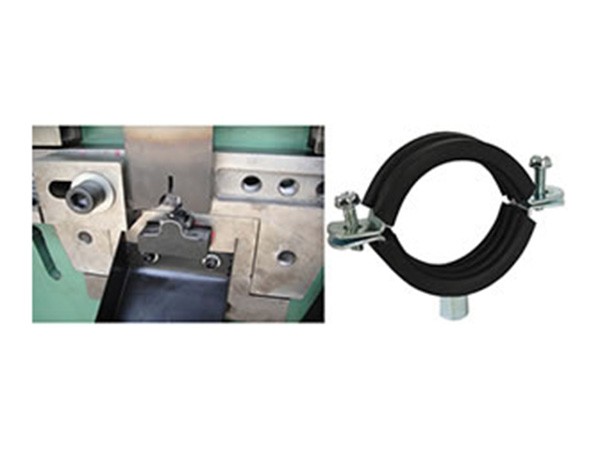

Split Pipe Hanging Clamp Machine

The split pipe hanging clamp machine combines punching and press forming, as well as automatic feeding and cutting. It is widely used for heavy duty pipe hanging clamps.

Technical Data

Item Data
Suitable material Carbon steel, stainless steel
Material thickness 0.5~1.5mm
Material width Less than 20mm
Production speed About 40 pcs/min
Motor power 2.2kW, 3phase

*This machine can be customized based on clamp size.

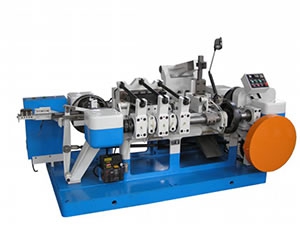

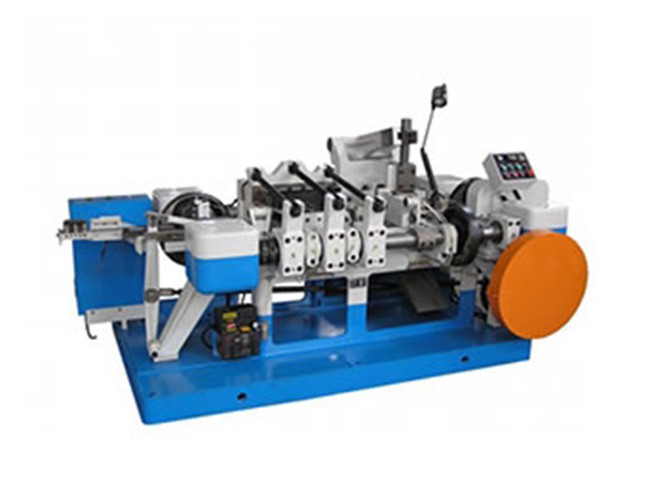

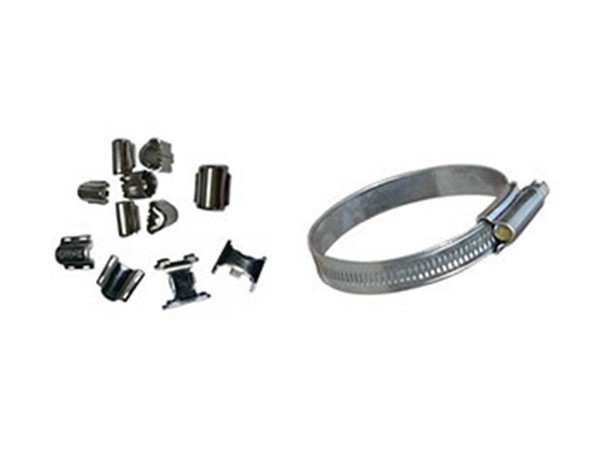

Hose Clamp Head Making Machine

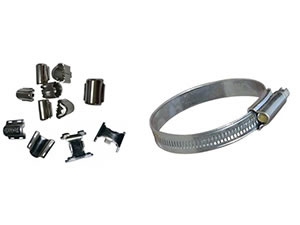

The hose clamp head making machine features a horizontal structure, multiple forming stations, and is used specifically for hose clamp heads, particularly those in American and German styles.

Technical Data

Item Data
Max. thickness of strip 2mm
Max. width of strip 50mm
Feeding speed 0-380m/min
Punching pressure 200KN
Punching speed 30-130times/min
Total motor power 5.5kW
Machine dimension 1830x2790x1300mm
Machine weight 2800KG
