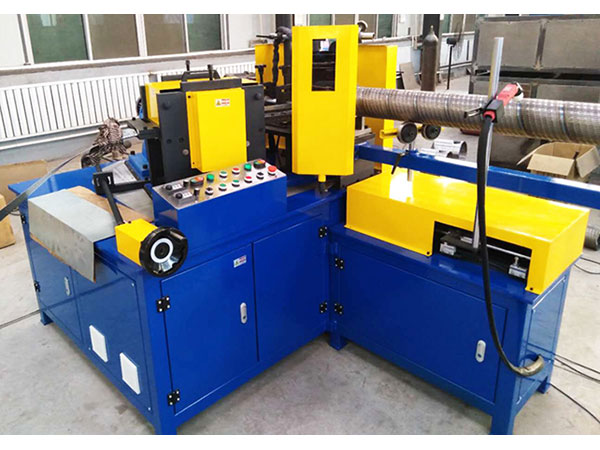

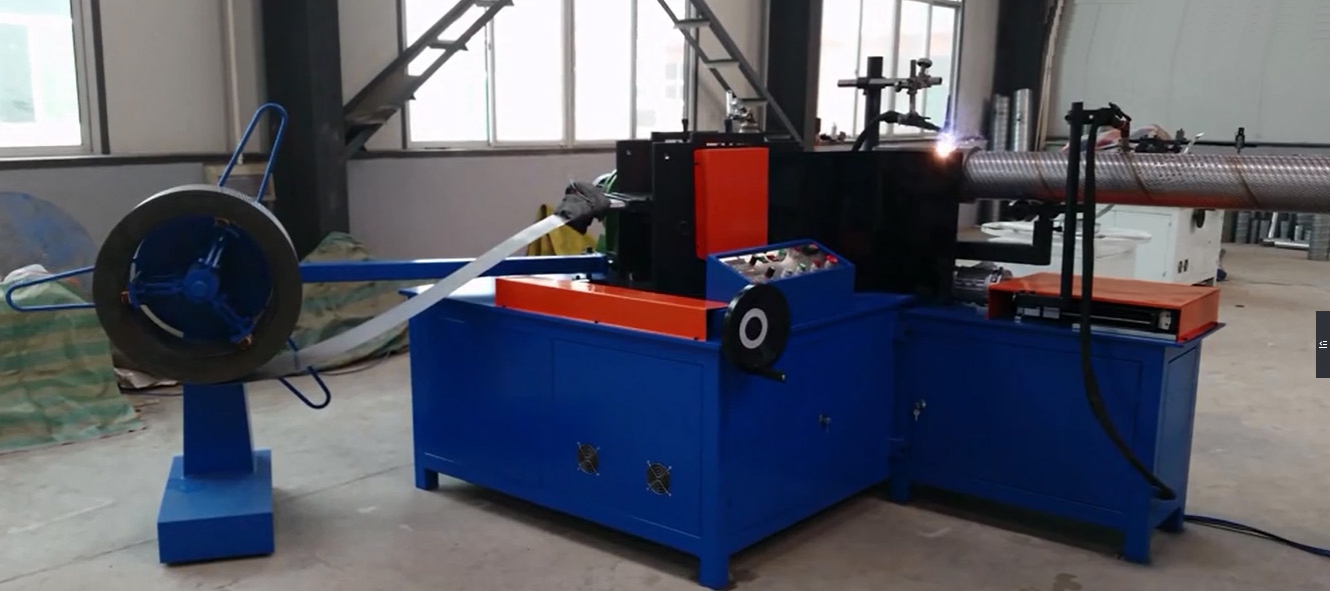

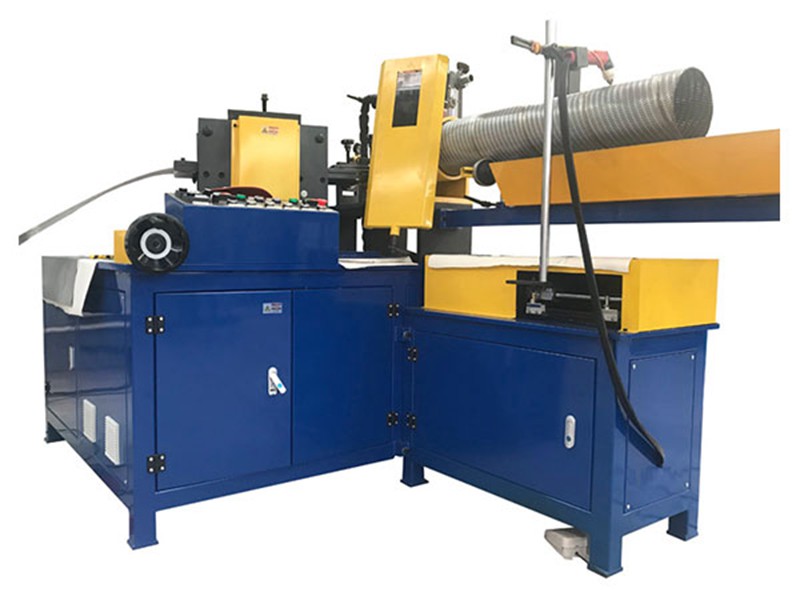

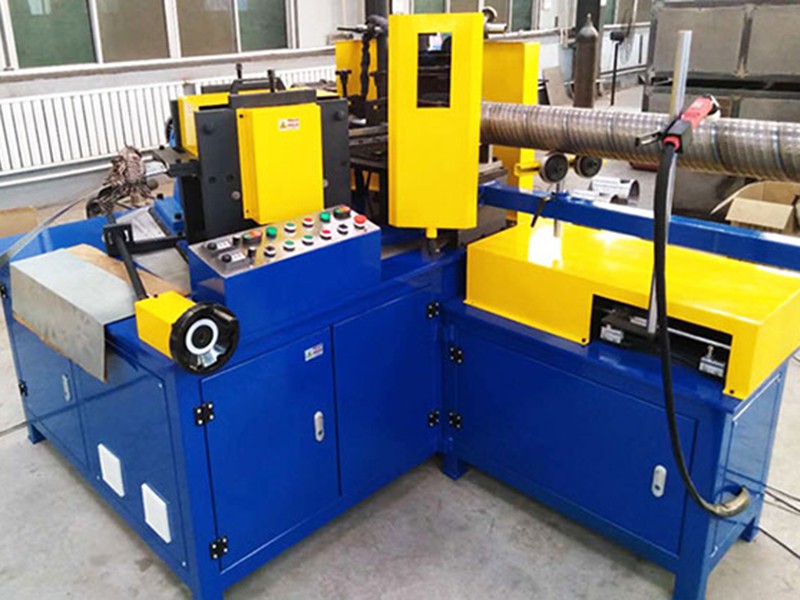

Spiral Sand Control Filtration Screen Tube Welding Machine

Description

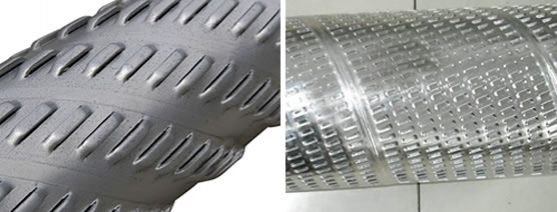

The spiral welded screen tubes are primarily used sand control filtration in petroleum and chemical industries. Traditionally, there are two types of screen tube for sand control filtration.

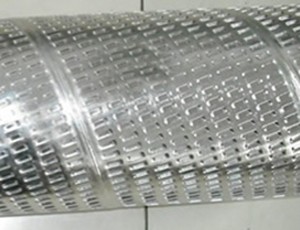

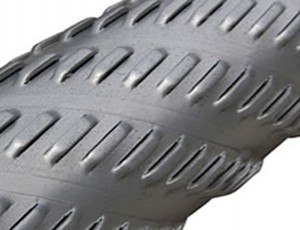

Slot Type

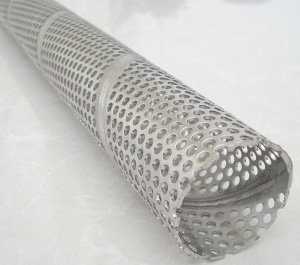

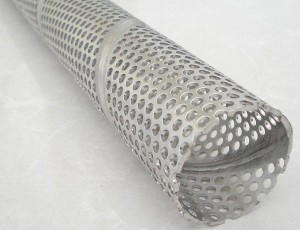

Perforated Type

The machine uses TIG methods for spiral seam welding, offering a clean and stable performance.

Technical Data

Item Data
Suitable raw material Carbon steel, stainless steel
Raw material thickness 0.8-2.0mm
Material strip width 100-300mm
Filter screen tube diameter Φ 60-300mm
Main driving motor power 2.2kW
Welding method TIG
Cutting method Plasma non-stop cutting
Production speed 0-15m/min
Main machine dimension 1500 x 1300 x 1400mm
Weight About 1000kg
