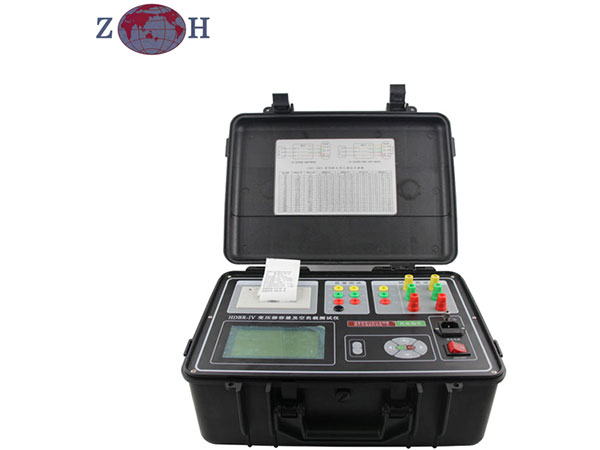

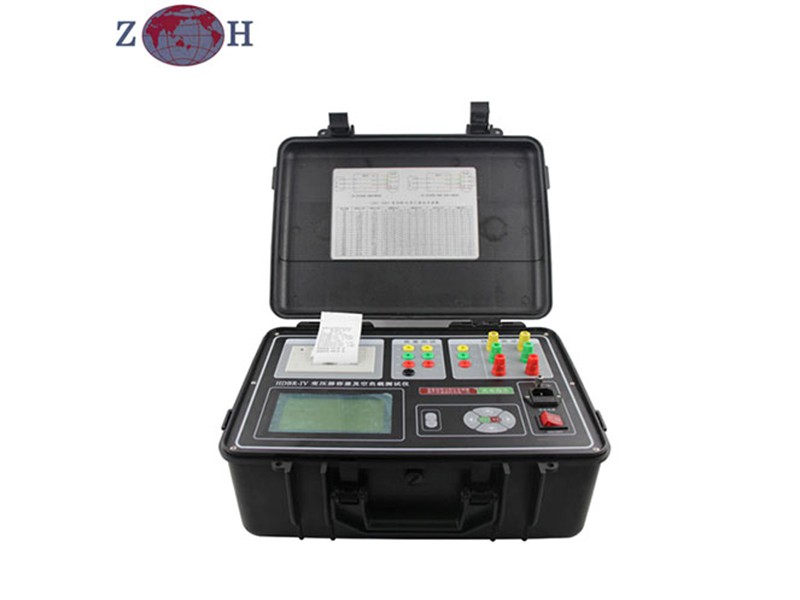

Capacitance and Dissipation Factor Meter
This capacitance and dissipation factor meter is an up-to-date test instrument for measuring capacitance and dissipation factor (dielectric loss and impedance) for full automatically voltage devices such as transformers, cables, capacitors, insulators, HV switches, arresters, etc.
This is a high precision instrument; main power is generated by inverter inside and boosted by transformer. Frequency of main power is 45Hz and 55Hz, different to power frequency and so avoid interference by power frequency. It is also suitable when power supplier is a generator.
Features
- Portable type, very light weight, no more than 30kg.
- Equipped with big screen (240x128mm), menu displaying with relative prompts in the right side, very simple operation, no need special training.
- Test results from the capacitance and dissipation factor meter can be saved or printed out; one time operation and automatically finish the entire test.
- Equipped with big capacity memory and calendar CMOS chip. Test results can be saved in time/date sequence; history records can be reviewed and printed out at any time.
- Equipped with wiring diagram menu inside helping operator to wire correctly.
- The capacitance and dissipation factor meter is equipped with ground detecting to ensure reliable stepping up.
- By equipped with insulation oil cup, this instrument can also test dielectric loss of insulation oil.
- The capacitance and dissipation factor meter is suitable for testing full-sealed capacitor type voltage transformer.
- It has inverter and sample circuit, all digital control, output voltage is constantly adjustable
- Equipped with multi-safety protection measures for voltage fluctuation, output short-circuit, over-voltage, over-current, over-temperature, etc.
Parameters
| Service conditions | -5℃ ~ 40℃ | RH < 80% | |
| Principle of anti-jamming | Varying frequency | ||
| Power supply | AC220V +/-10% (no limit on frequency) | ||
| HV output | voltage | 0.5~10kV | |
| precision | 5% | ||
| Max. current | 140mA | ||
| Capacity | 1000VA | ||
| Self-exciting power | AC 0~30V | 45Hz/55Hz | |
| Max. current | 15A | ||
| Resolution ratio | tgδ 0.001% | Cx: 0.1pF | |
| Precision | Δtgδ | +/- (reading x 1.0% + 0.040%) | |
| ΔCx | +/- (reading x 1.0% +1.0pF) | ||
| Measuring range | tgδ | No limit | |
| Cx | 15pF < Cx < 100000pF | ||
| 10kV | Cx < 30,000pF | ||
| 5kV | Cx < 60,000pF | ||
| 1kV | Cx < 100,000pF | ||
| For CVT | Cx < 100,000pF | ||
| Memory size | Can store 40 units test data | ||
| Dimension | 470 x 320 x 390mm (L x W x H) | ||
| Weight | 30Kg | ||
