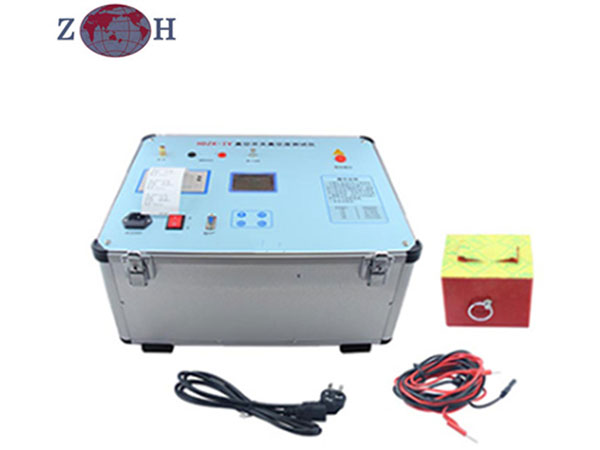

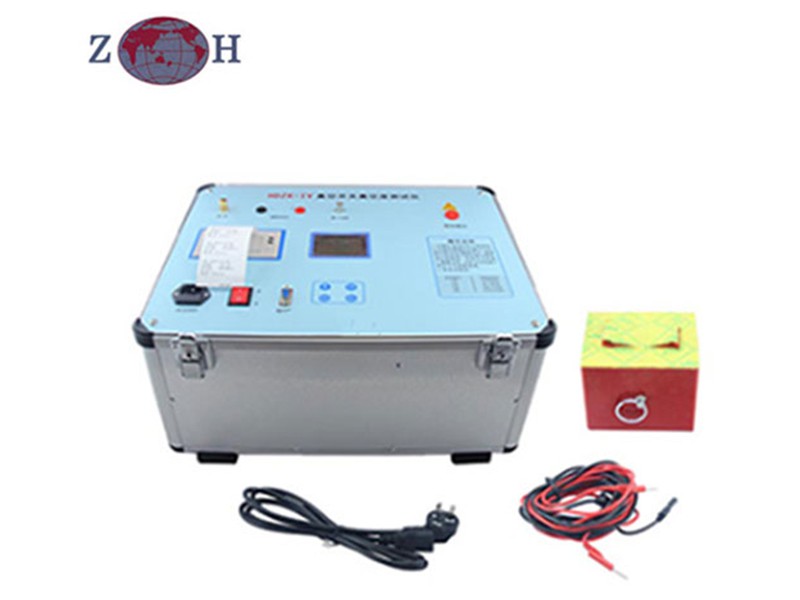

Vacuum Bottle Tester

Inquiry Form

Different to conventional power-frequency withstand voltage test method, the vacuum bottle tester adopts ionization charges sampling technology, quantitatively testing vacuity of vacuum bottles, evaluating if vacuum bottle in circuit breaker is in normal range and calculating vacuum switch life with fast leaking.

The vacuum bottle tester can be used for controlling industrial vacuum bottles quality or vacuum switch manufacturers for inspection or used in periodically checks and overhauling vacuum switches.

Main Features of Vacuum Bottle Tester
1. Based on ionization charges sampling technology.
2. Special treatment to leakage current.
3. Able to detect vacuum bottle which leaks completely.
4. PC controlling measuring via RS232 interface, calculating leakage and generating test database.
5. Built-in measuring curves of almost all the vacuum arc-extinguish chambers, domestic and overseas.
6. Perfect input protection circuit and high voltage protection technology.

Main Technical Data of Vacuum Bottle Tester

Item Specifications
Measuring range 10-5-10-1Pa
Measuring accuracy Less than 10% in the range of 10-4-10-1Pa
Measuring resolution ratio 10-5Pa
Vacuum bottle leakage measurement Electric breakdown
Dimensions 500×330×250mm
Weight 12kg
