Power Quality Analyzer

Inquiry Form

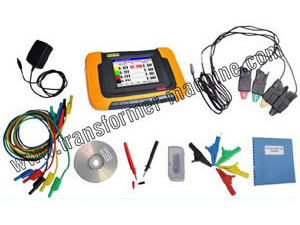

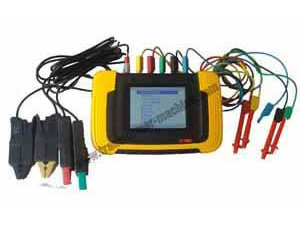

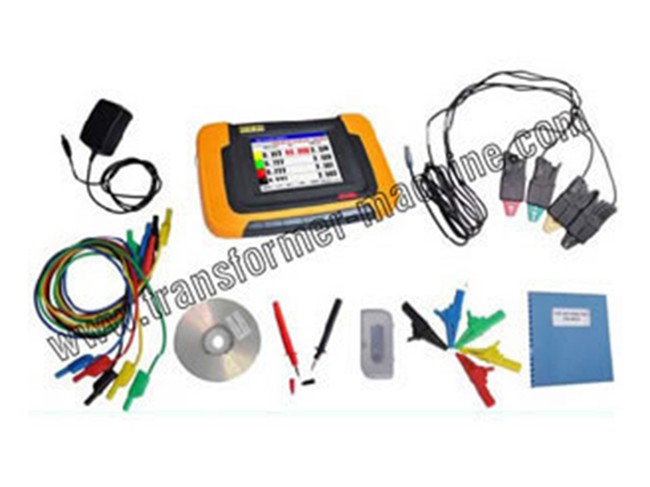

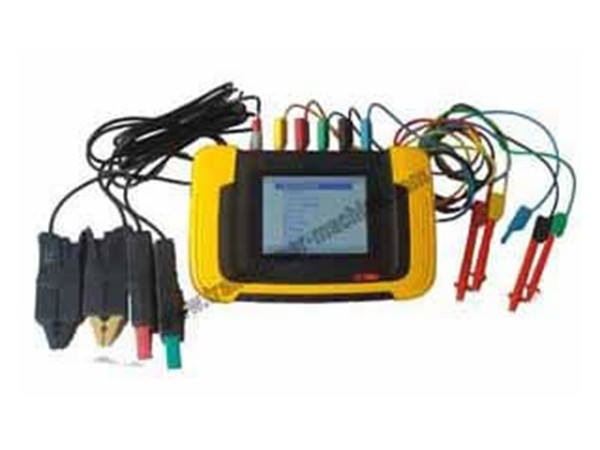

This PQA-3561 is 3P/3W and 3P/4W, power quality analyzer, using to test and evaluate power grid quality. It provides multiple analyzing for electric harmonic, voltage/current/frequency, 3-phase unbalance, power and energy, data recording and more.
The power quality analyzer helps to locate, predict, prevent and troubleshoot problems in power distribution systems. It is featured with big size memory, suitable for long-time analyzing and collecting data of power grid; its software analyzes data collected and uploaded into PC.

Applications of Power Quality Analyzer
1. Frontline troubleshooting - diagnose problems on-screen to get your operation back online immediately.
2. Diagnosis in advance - detects and prevents power quality issues before they occur.
3. Validate incoming power quality at the service entrance.
4. The power quality analyzer finds unreachable or intermittent issues.
5. Load studies - verify electrical system capacity before adding loads.
6. Evaluation - quantify energy consumption before and after improvements in order to save energy on electrical devices.

Main Features of Power Quality Analyzer
1. Light weight, small size and portable.
2. 5.7” 320x240 colorful LCD touch screen.
3. It tests 3-phase volt, null line volt, 3-phase current, null line current and more.
4. The power quality analyzer has up to 50 times harmonic testing with frequency spectrum diagram.
5. Power testing: 3-phase apparent power, active power, reactive power, power factor and 3-phase electric power
6. 3-phase unbalance testing with vivid chart.
7. Record at least 40 times of surge current and also 40 times of sag and swell.
8. Testing for wave motion, short-time and long-time flicker.
9. The power quality analyzer has digital oscilloscope, checking waveform for voltage and current signal.
10. With Data View software for convenient analyzing of monitoring results.
11. USB communication port.
12. High performance lithium ion battery powered, last for 5 hours

Main Technical Data of Power Quality Analyzer

Item Specifications
Input impedance 1MΩ, 20PF
Measurement range of voltage 10-700Vrms
Measurement range of current 5A, 10A, 100A, 1000A, 1500A and 3000A (via related current clamps)
Frequency range 40Hz-70Hz
Harmonic measurement 1-50th
Inrush current 2000A
Peak voltage 1000V
Weight of main body 1.6kg (3.53lb)

Main Measurement Function Data of Three-Phase Power Quality Analyzer

Item Measurement range Accuracy
Voltage 10~700V (true RMS) +/-0.5%
Current 0.5~3000A (true RMS) +/-0.5%
Frequency 40~70Hz +/-0.01Hz
Harmonic testing Voltage: total harmonic, 1~50th +/-0.1%(r)
Current: total harmonic, 1~50th +/-0.05A
Power testing Active power: 0.05~700kW Indication +/-50W
Apparent power: 0.05~700kVA Indication +/-50VA
Reactive power: 0.05~700kVAR Indication +/-50VAR
Power factor: 0.00~1.00 Indication +/-0.05
Active energy: 0.01~10000kWh Indication +/-0.05kWh
Apparent energy: 0.01~10000kVAh Indication +/-0.1kVAh
Reactive energy: 0.01~10000kVARh Indication +/-0.1kVARh
Average power factor: 0.00~1.00 Indication +/-0.005
3-phase Unbalance Fundamental voltage: 10~700V (true rms) +/-0.5%
Fundamental current: 0.5~1000A (true rms) +/-0.5%
Fundamental frequency: 40~70Hz +/-0.01Hz
Phase angle: 0~360° +/-0.3°
Unbalance: 0.0%~100% +/-0.2%
Data recording 3P voltage, 3P current, null current, voltage harmonic (THD and 1~25 harmonics), current harmonic (THD and 1~25 harmonics), unbalance, active power, apparent power, reactive power, power factor, flicker and fluctuation, etc. Time interval: 3s~30min, adjustable; Time duration: <960 hours
Sags (Dips)/Swell Voltage sag, voltage Swells and instant interruption Max. could record 40 times
Fluctuation Voltage fluctuation 0.1%~10.0% ≤ +/-5%
Flicker Short-time and long-time flicker Short-time ≤ +/-5%
Digital oscilloscope Transient waveforms of 3P voltage, 3P current, null voltage and null current Max. sampling frequency: 200KHz Min. sampling frequency: 100Hz
