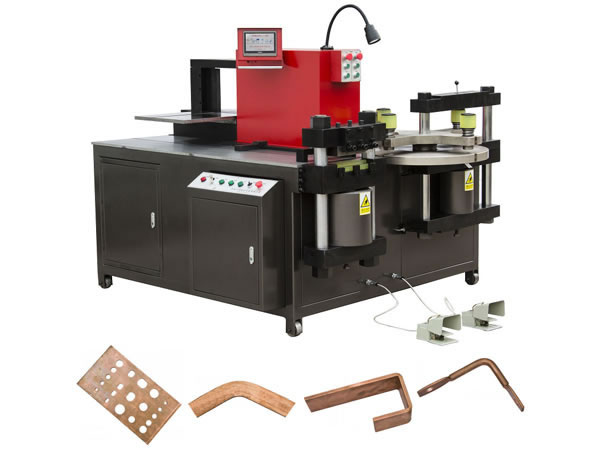

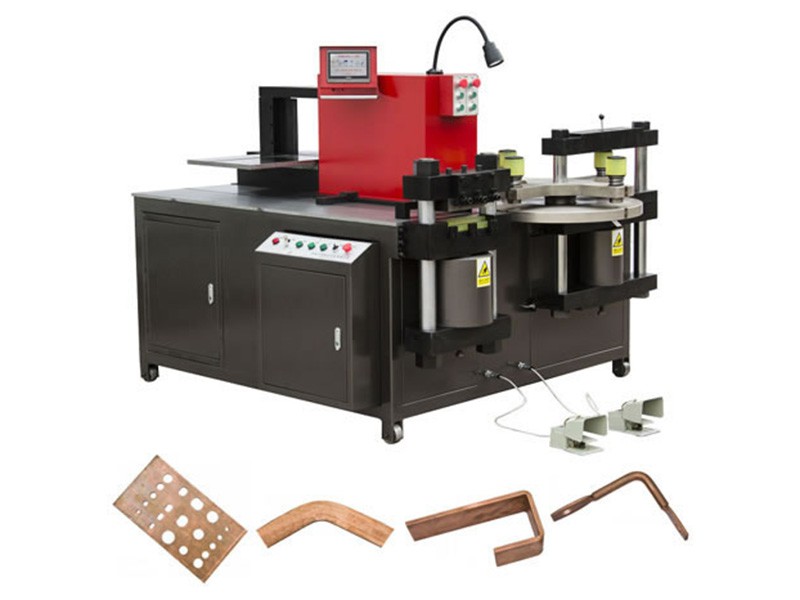

Busbar Bending Punching Cutting Machine

Inquiry Form

Description of Busbar Bending Punching Cutting Machine:
This machine integrates the functions of punching, cutting and bending, embossing, twisting, flatting, pressing tie-in, etc. Our busbar bending punching cutting machine is specially produced to process aluminum and copper busbars used in electric power, high/low voltage electric apparatus and busway industries.

Components of Busbar Bending Punching Cutting Machine:
- Main driving motors: from domestic
- Oil pump: from Taiwan
- Electromagnetic valves and overfall valves: from Taiwan
- Relays: Schneider
- Contactors: Schneider
- Other electric parts: from China
- PLC, touch screen, grating ruler (for NC type): from Japanese Mitsubishi

Technical Data of Busbar Bending Punching Cutting Machine:

Item 303C-1/3 303TZ 503TZ 803TZ
Nominal force (KN） 300 300 500 800
Max. busbar thickness (mm) 12 12 16 20
Max. busbar width (mm) 160 160 200 260
Suitable hole diameter (mm) Φ4.3-Φ25 Φ4.3-Φ25 Φ4.3-Φ32 Φ4.3-Φ36
Max. vertical bending width (mm) 120 120 120 120
Min. vertical bending angle 90° 90° 90° 90°
Dimension (mm) L 1500 1700 1820 2150
W 1150 1350 1550 1750
H 1170 1500 1465 1450
Weight (kg) 1170/1270 1390 1590 1970

Zhenhuan, a forming machine manufacturer in China, provides superior roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine and other forming machines.
