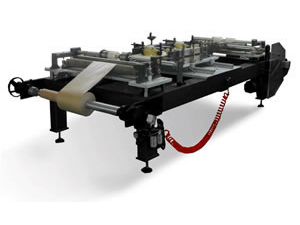

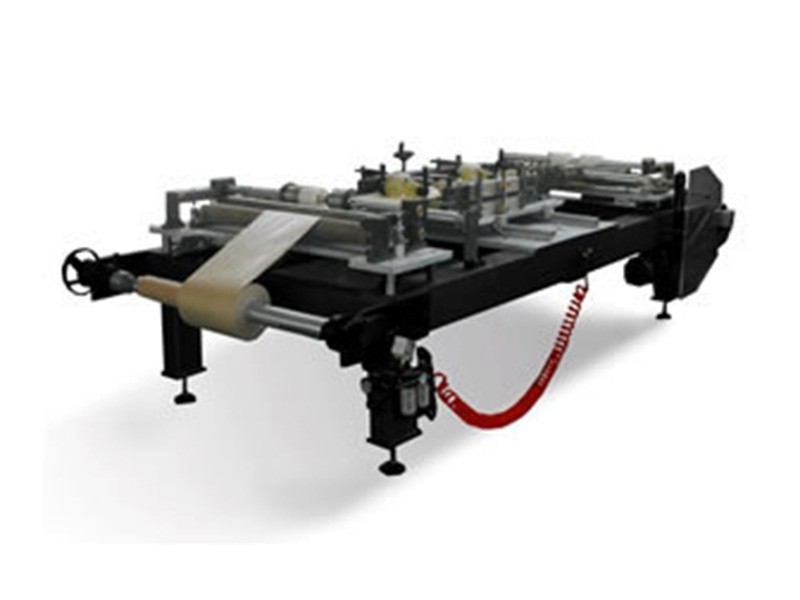

Paper Folding Machine
This machine is mainly for folding interlaminar insulation paper used in transformer windings. After winded in the coil, such folded insulation paper will form the end-insulation, thus increases mechanical intensity, winding efficiency of coil and decreases the material cost.
This machine is similar to American machine, either in structure or folding principle, high productivity and reliability.
Main Technical Data
| Item | Specifications |
| Insulation paper roll size | ID:76mm, OD<400mm |
| Folded paper roll size | ID:76mm, OD<400mm |
| Width of paper roll | 160-800mm |
| Thickness of paper | 0.10-0.21mm |
| Folding width | 6-19mm |
| Folding layers | Max. 4 layers |
| Folding speed | 0-20m/min, inverter controlled, adjustable |
| Main driving motor power | 1.1kW, 3-phase, 380V, 50Hz |
| Air consumption | 0.1m3/min |
| Machine floor space | 5×2×1.1m |
