CNC Coil Winder
Different coils require different CNC coil winding machines. Some of these coils include air-core coils, miniature toroidal coils, self-boarded bobbin free coils, speaker voice coils, wireless charging coils and transformer coils.
-
- Multi-Axis Air
- CNC Wireless
- CNC Speaker
- CNC Miniature

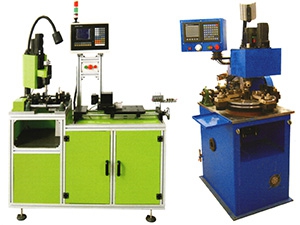

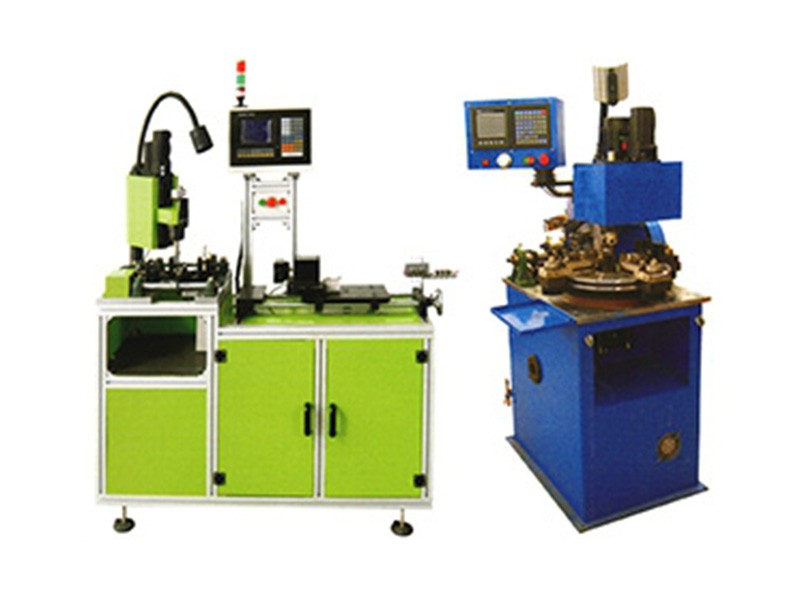

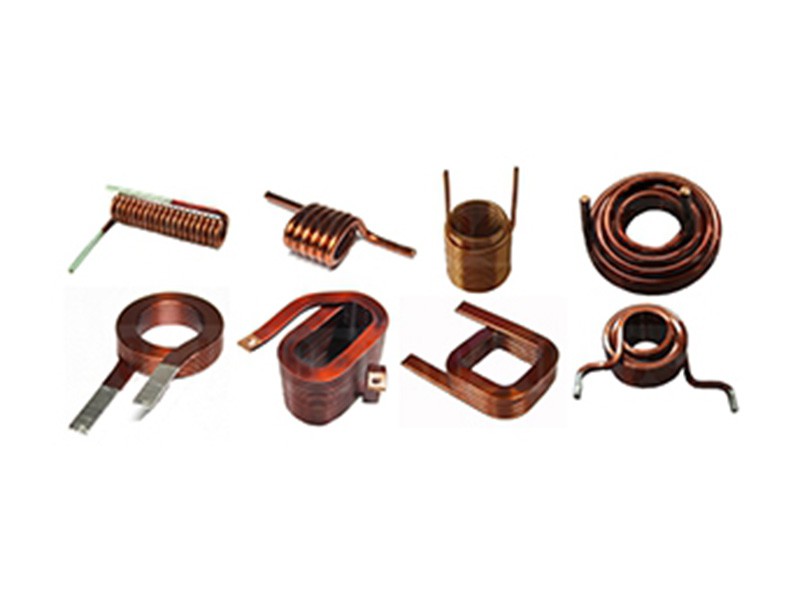

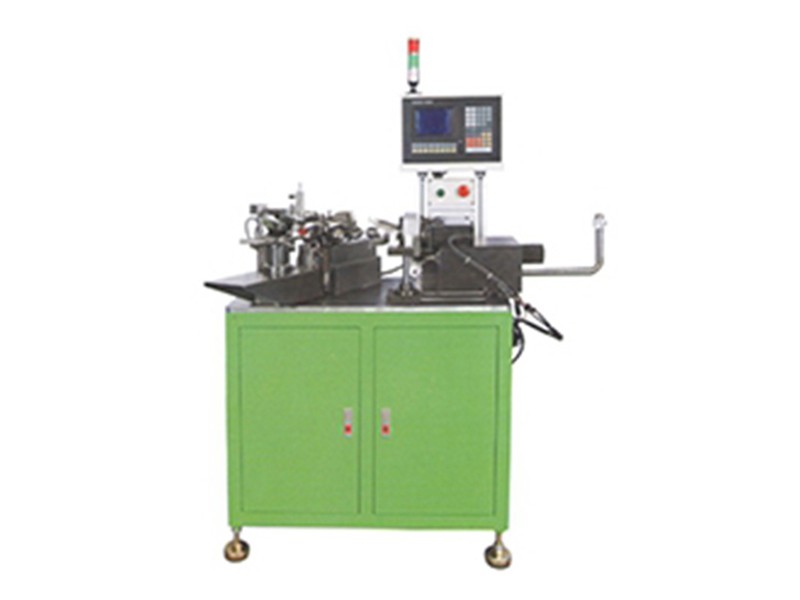

Multi-Axis Air Coil Winding Machine

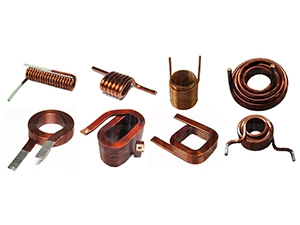

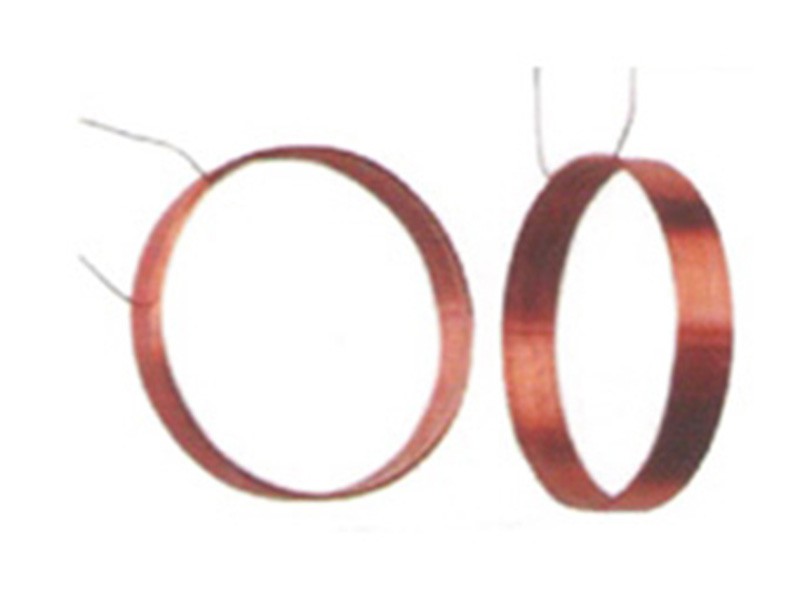

We provide fully automatic 3-axis CNC machines for winding multi-layer air core coils. They can wind a maximum of 4 layers in round or rectangular bobbin free coils.
Main Features
- Machines of different capacities for different wire gauges: 0.2-1.0mm, 1.0-2.0mm, 2.0-4.0mm
- High precision ball screw and bearings with high precision and long life
- All three axes are controlled by servo motor, meaning low noise and stable operation.
- CNC control, simple operation, easy programming
- Optional wire stripping machine and tinning device
Technical Data
| Item | |||
| Suitable wire diameter | 0.2-1.0mm | 1.0-2.0mm | 2.0-4.0mm |
| Suitable air core coils | Single-layer | Multi-layer | |
| Stripping method | 3 diamond blades, centrifugal type | Servo stripper | |
| Max. guide head stroke | 90mm | 65mm | |
| Max. lead wire length | 30mm | ||
| Final lead wire position | Freely adjustable | ||
| Main spindle speed | 0-3000 rpm | 0-1500 rpm | |
| Max. production speed | 50 pcs/min | 30 pcs/min | |
| Air coil winding direction | Clockwise / anti-clockwise | ||
| X-axis setting range | 0.1º-359.9º | ||
| Y-axis setting range | ±0.1º - ±99C359º | ||
| Winding spindle stop precision | 0º | ||
| Winding set resolution ratio | 0.1º | ||
| Stripping motor | AC100W | AC 150W | |
| Tinning oven power | 400W | ||

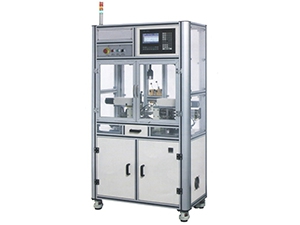

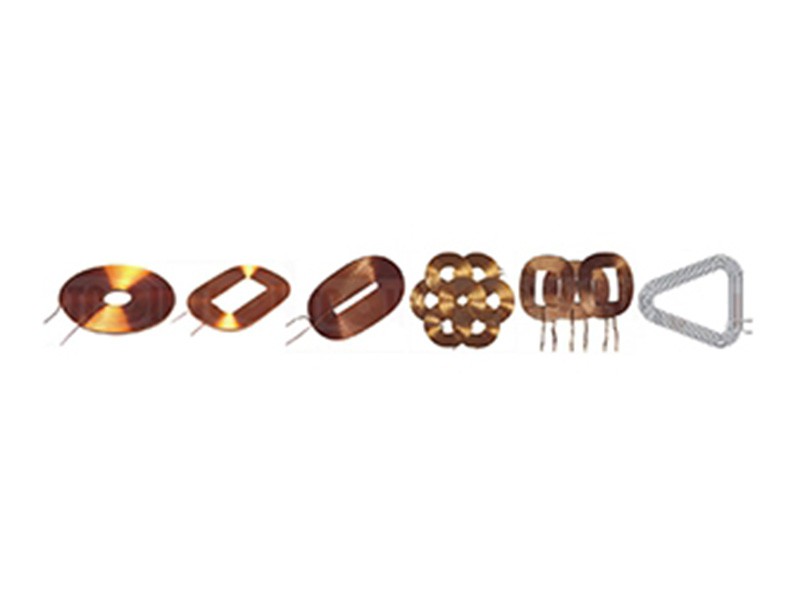

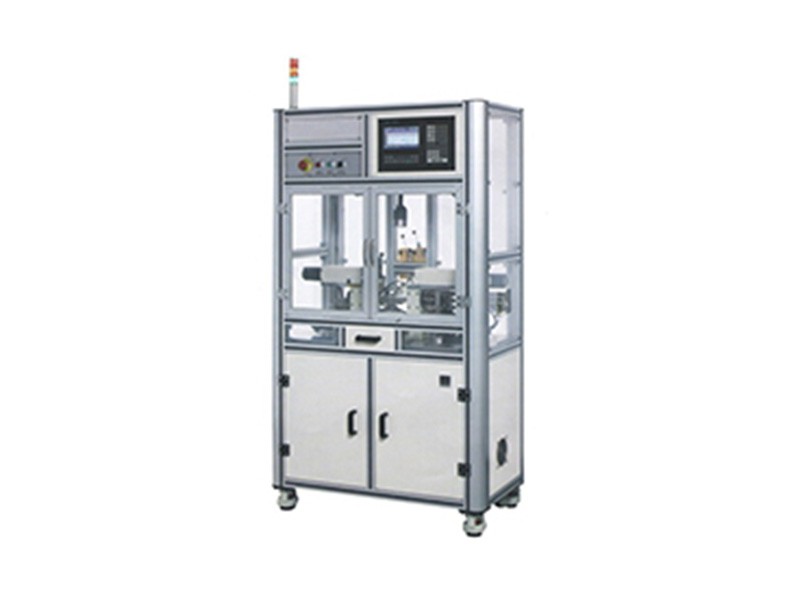

CNC Wireless Charging Coil Winder

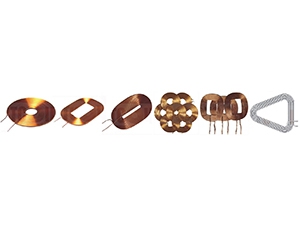

The CNC wireless charging coil winder is specially designed for automatically winding wireless charging coils. It is suitable for strand wires and silk-covered wires.
Main Features
- Hot air bonding
- Fully automatic 4-axis servo motor control
- The wire feeding device uses an SMC rodless cylinder and HIWIN linear guide
- Internationally known brand name PLC control system
- Full seal protection enclosure, clean and good safety
Technical Data
- Number of spindles4
- Winding wire section range1-8mm2
- Suitable wireless charging coilsBoth transmitting and receiving coils
- Bonding methodHot air blowing
- Finishing lead positionArbitrary
- Flying spindle speed0-3000 rpm
- Winding spindle speed0-3000rpm
- Max. production speed2 pcs/min
- Winding directionClockwise / anti-clockwise
- X-axis setting range0 - ±999999C359º
- Y-axis setting range0 - ±999999C359º
- Winding spindle stop precision0º
- Winding set resolution ratio0.1º
- Beginning lead lengthMin. 10mm, max. 30mm
- Finishing lead lengthMin. 10mm, max. 50mm

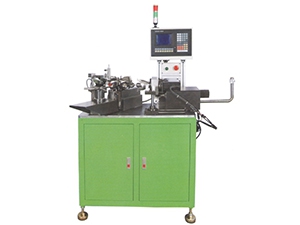

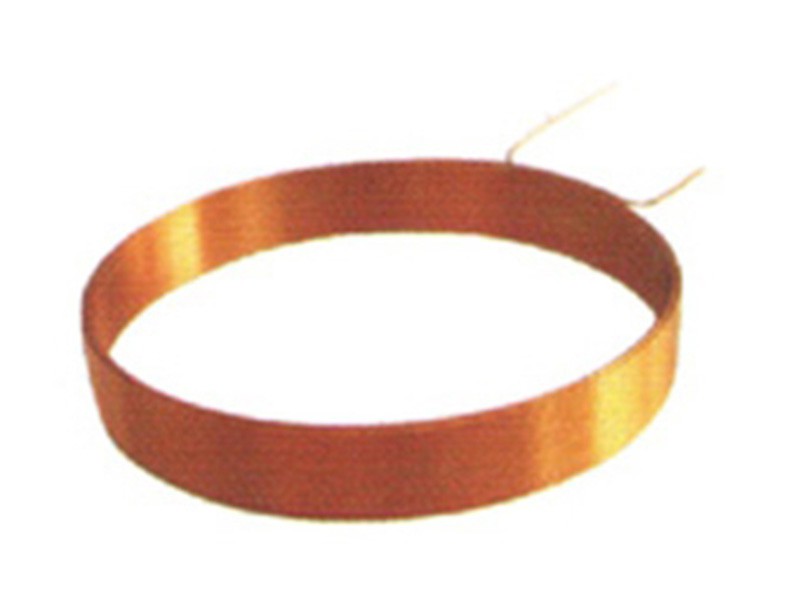

CNC Speaker Coil Fly Winding Machine

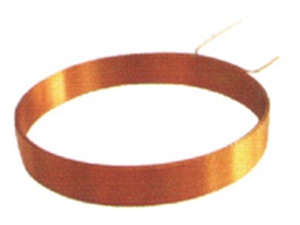

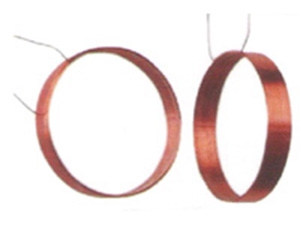

The CNC speaker coil fly winding machine is a CNC machine used for winding self-supporting speaker voice coils using wires that have been coated in a thermo-plastic adhesive. The wire is heated by a hot air supply as it is wound onto the coil, and each turn is bound together using the adhesive. Finished coils are removed from the tool and automatically ejected from the machine onto a rotating unloading tool.
Main Features
- Fly winding design, multi-station winding & unloading
- Imported high precision ball screws & bearings, more accurate winding & guiding, longer life
- Two axis servo motor drive
- The CNC control system uses a microcontroller for simple operation and easy programming
- Low noise level
Technical Data
- Number of spindles2
- Winding wire range0.02-0.1mm
- Bonding methodHot air
- Max. stroke of guide head65mm
- Lead positionArbitrary
- Spindle speed0-3000 rpm
- Max. production speed5 pcs/min
- Air coil winding directionClockwise / anti-clockwise
- Y-axis setting range0 - ±999999C359º
- Winding spindle stop precision0º
- Winding set resolution ratio0.1º

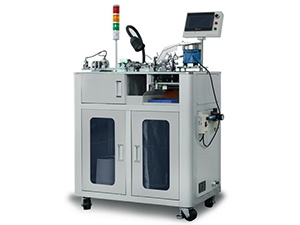

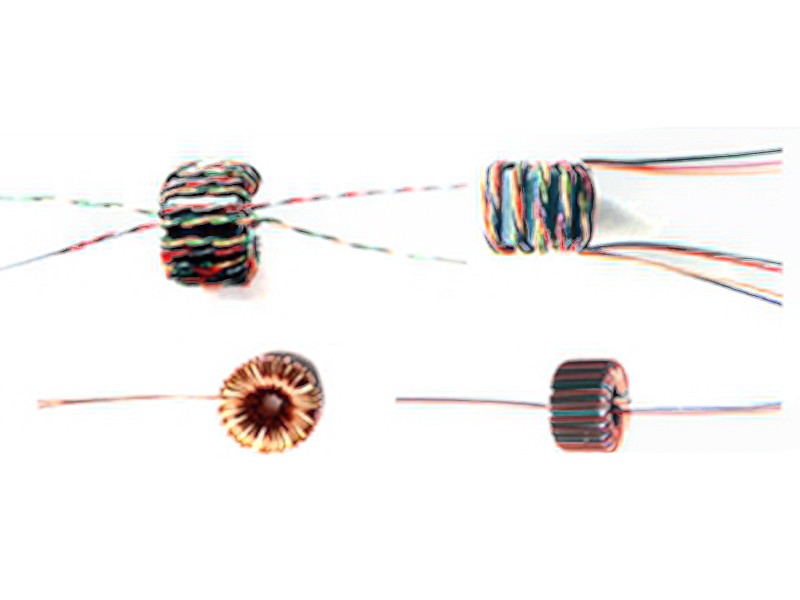

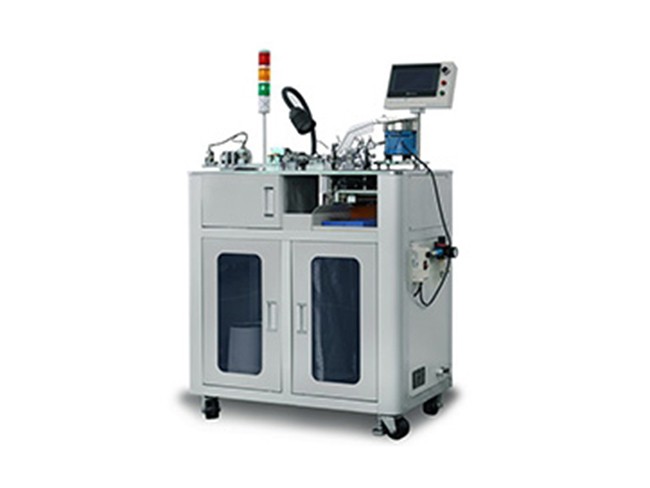

CNC Miniature Toroidal Coil Winder

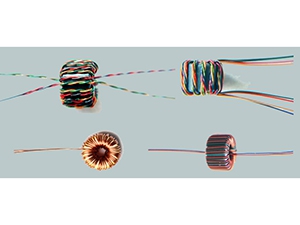

The CNC miniature toroidal coil winder is used to wind 4 twisted wires into super miniature toroidal cores. It is a fully automatic machine, with automatic core feeding, wire accumulation, twisting, winding and finished coil unloading. We also offer other miniature toroidal coil winders for different wire winding purposes.
Main Features
- Separate accumulating speed & length control
- Separate winding speed & turn control
- Optical fiber sensor plus dual digital displayer for turn controlling
- Variable winding pitch, programmable
- Servo motor drive, high precision, stable speed switching
- Fully automatic, continuous working, numerous machines with few operators
Technical Data
- Miniature core ID1.27~2mm
- Miniature core OD2~4mm
- Miniature core height0.65~3mm
- Suitable wire diameter0.07 ~0.127mm
- Winding method4 wires twisted
- Winding turns9~16
- Continuous production delay timeLess than 2%
- Winding speed4~6s per piece
- pass percent>99.5%
- Machine dimensionAbout 850 x 550 x 1400mm
- Machine weightAbout 450kg
